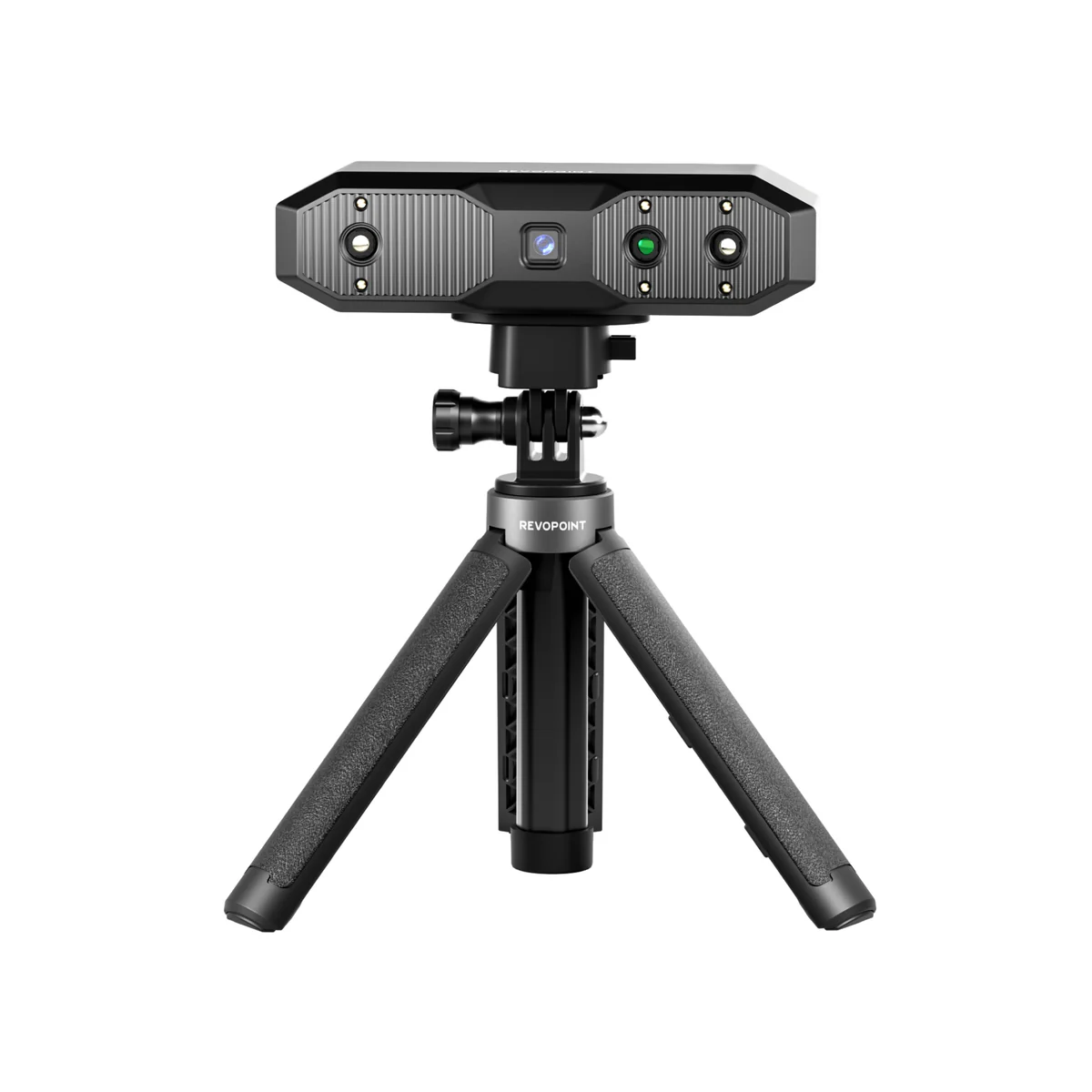

Revopoint MINI 2 3D Scanner

Industrial Blue Light Precision
The Revopoint MINI 2 3D Scanner is designed for professionals who require highly detailed digital models. The scanner uses dual-camera blue structured light technology, enabling it to capture tiny geometric features with exceptional accuracy.

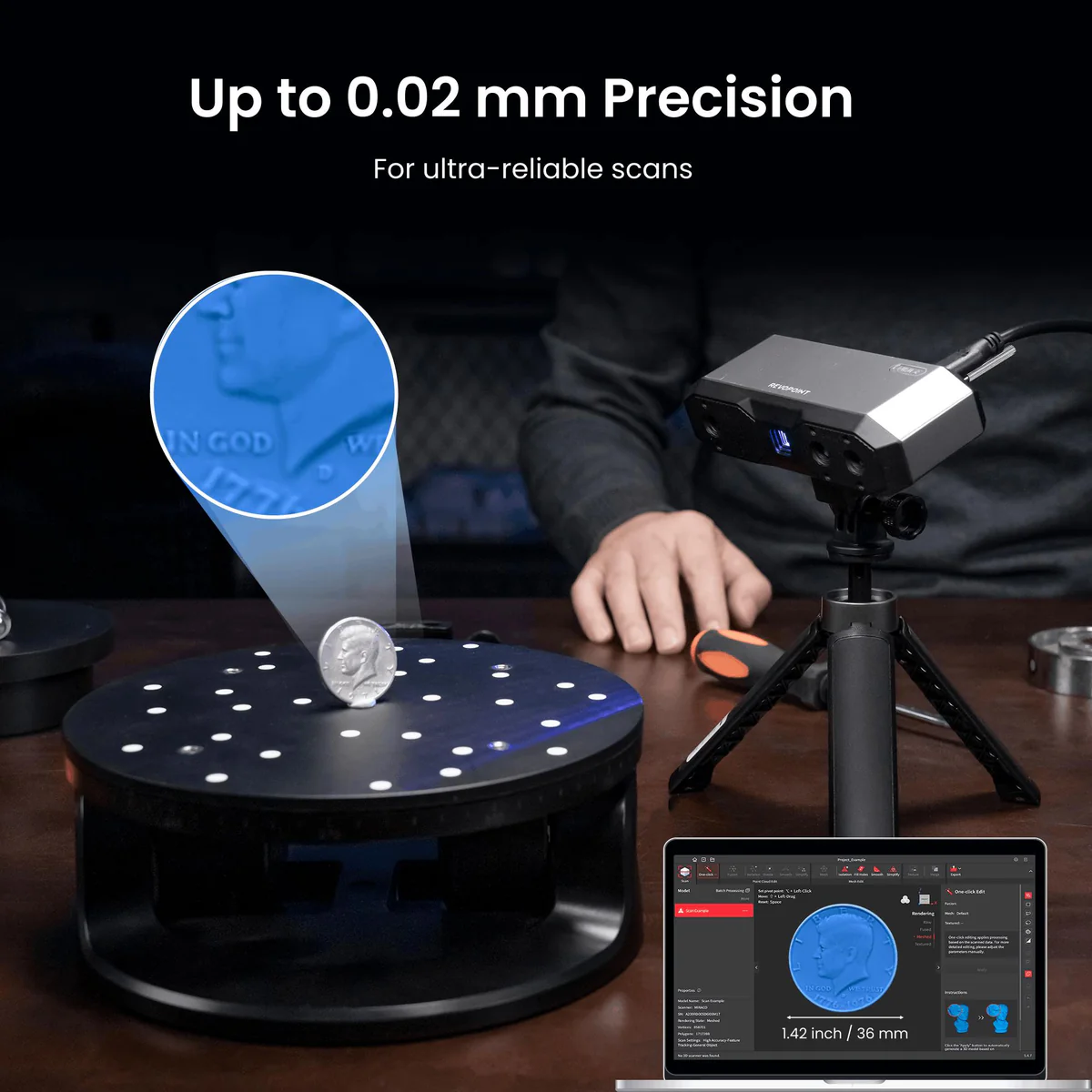

With single-frame precision up to 0.02 mm and accuracy up to 0.05 mm, the scanner produces dense point clouds capable of reproducing intricate surface details.

This level of precision allows the MINI 2 to be used in demanding applications such as jewelry design, dental modeling, miniature reproduction, and industrial quality inspection.

Capture Tiny Details with High Resolution
The MINI 2 scanner is optimized for small objects and detailed components. It can scan objects as small as 10 × 10 × 10 mm, capturing fine structures that many general-purpose scanners cannot detect.

With a point distance up to 0.02 mm, the generated 3D models contain dense and accurate data suitable for engineering analysis or precision 3D printing workflows.

This capability makes the scanner an excellent choice for:

Jewelry design

dental cast modeling

miniature figurines

mechanical parts

cultural relic digitization

Fast and Stable Scanning

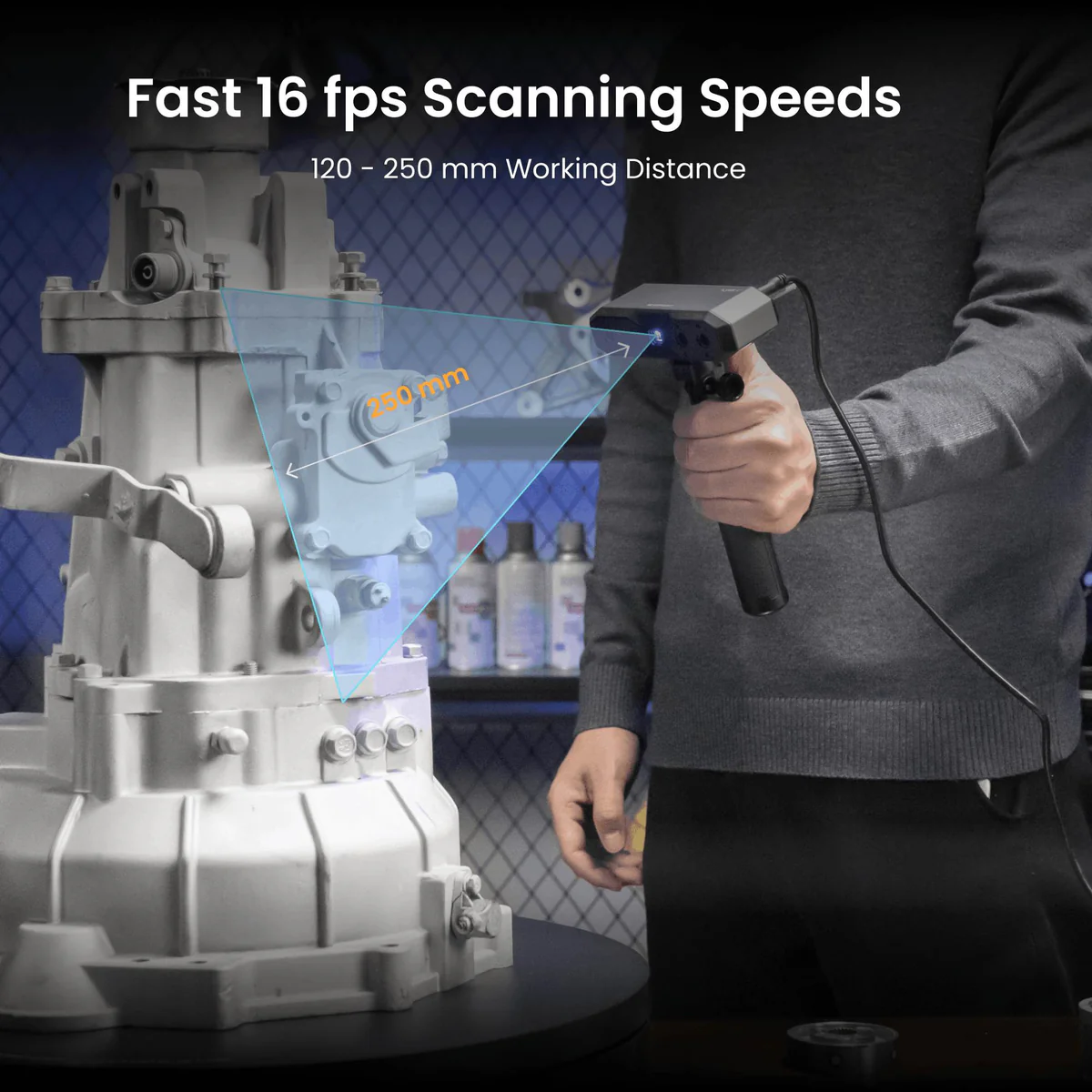

The Revopoint MINI supports scanning speeds of up to 16 frames per second, enabling fast data capture while maintaining high precision.

To improve tracking stability during handheld scanning, the device integrates a 9-axis IMU sensor that helps eliminate faulty frames caused by vibration or sudden movement.

The scanner supports both handheld scanning and turntable scanning, allowing users to choose the most efficient workflow depending on object size and complexity.

Flexible Working Distance and Capture Range
The MINI scanner provides a working distance between 120 mm and 250 mm, allowing users to capture objects at various scales with optimal precision.

The capture area ranges from:

52 × 64 mm at 120 mm distance

168 × 132 mm at 250 mm distance

This flexible capture range makes the scanner ideal for scanning intricate components and small industrial parts.

Portable Design and Broad Compatibility
Despite its industrial-level performance, the MINI scanner is lightweight and portable, weighing only about 175 g.

It connects through USB-C or Wi-Fi 6 and works with multiple operating systems including Windows, macOS, Android, and iOS.

Scan data can be exported in standard formats such as:

STL

OBJ

PLY

ASC

3MF

FBX

GLTF

These formats allow seamless integration with CAD software, 3D modeling tools, and 3D printing workflows.

Key Features
Industrial blue structured-light scanning technology

Precision up to 0.02 mm

Accuracy up to 0.05 mm

Scanning speed up to 16 fps

Minimum scan volume 10 × 10 × 10 mm

Capture area up to 168 × 132 mm

Built-in 9-axis IMU motion tracking

USB-C and Wi-Fi connectivity

Compatible with major CAD and 3D printing software
