Professional All-in-One 3D Scanning Solution

The Sermoon P1 3D Scanner is designed for professionals who need accurate and flexible 3D capture. Unlike traditional scanners that rely on external computers, the P1 features an integrated processing system that allows scanning, processing, and previewing directly on the device. This significantly simplifies workflows and allows users to complete entire scanning tasks without a dedicated workstation.

Powered by a high-performance Qualcomm processor with CPU, GPU, and FPGA acceleration, the scanner delivers fast real-time data processing and smooth scanning performance. It also includes 24 GB LPDDR5X RAM and 256 GB high-speed storage, ensuring stable operation when handling large scan datasets.

---

Hybrid Multi-Laser Scanning Technology

The scanner integrates a hybrid light system consisting of 22 cross-line blue lasers, 7 parallel-line lasers, and a single-line laser, along with NIR structured light. This multi-mode configuration enables efficient scanning for different applications.

• 22 Cross-Line Mode – Fast scanning of large objects and surfaces

• 7 Parallel-Line Mode – High-detail scanning for fine geometry

• Single-Line Mode – Deep hole and recessed area scanning

• NIR Mode – Markerless scanning for large objects and human body capture

With these modes, the P1 can scan objects ranging from 5 mm to 4 m in size, covering applications from small industrial parts to large mechanical assemblies.

---

High Precision for Professional Work

Accuracy is critical for reverse engineering, inspection, and digital archiving. The Sermoon P1 offers precision up to 0.02 mm with volumetric accuracy of 0.06 mm/m, delivering highly detailed and dimensionally reliable models.

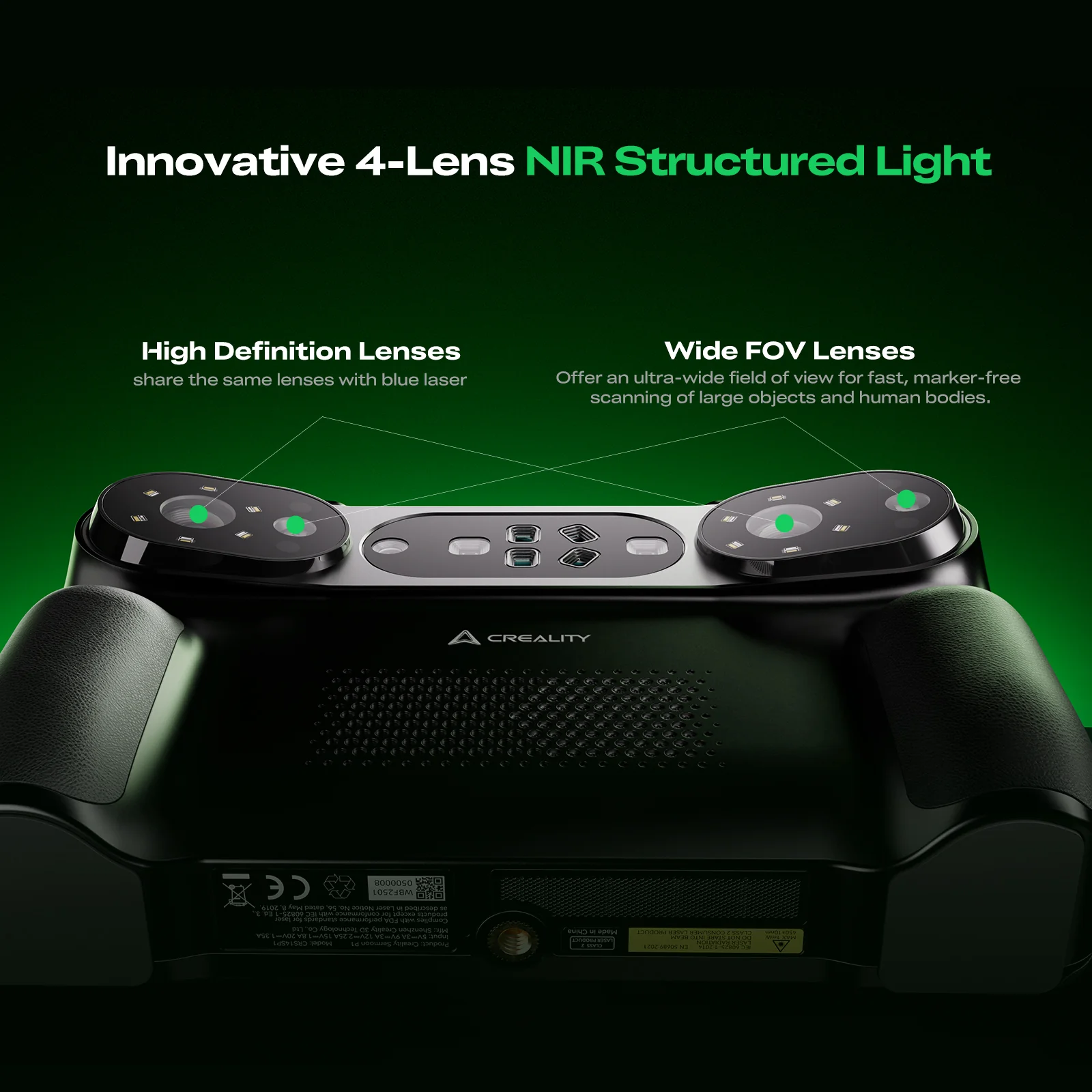

Its four-lens imaging system and advanced algorithms ensure smooth real-time reconstruction even when scanning complex geometries or irregular surfaces.

---

Standalone and Flexible Operation

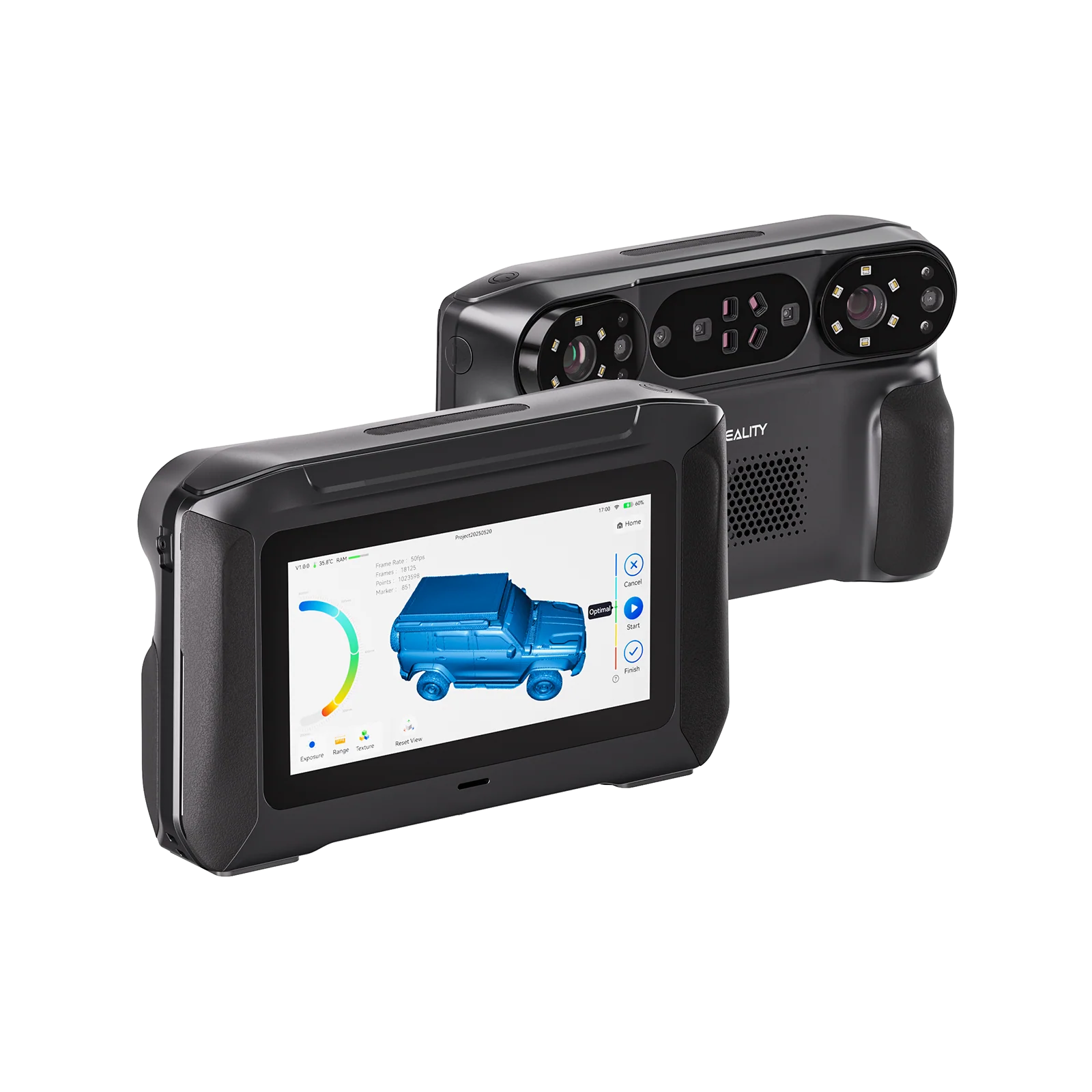

One of the biggest advantages of the Sermoon P1 is its true standalone scanning capability. A built-in 6-inch HD touchscreen allows users to control scanning, review models, and manage projects directly on the device.

The scanner supports three working modes:

• Standalone scanning without a computer

• Wireless PC connection via Wi-Fi

• Wired PC connection for high-performance processing

This flexibility makes the P1 ideal for field work, workshops, laboratories, and industrial environments.

---

Portable Design for Field Scanning

The Sermoon P1 is designed for mobility. It features dual hot-swappable batteries, allowing continuous scanning without shutting down the device. Each battery can be charged independently via USB-C and supports fast charging.

Built-in Wi-Fi 7 connectivity ensures fast wireless data transfer and stable connections for remote workflows.

---

Designed for Professional Applications

The Sermoon P1 supports multiple workflows and integrates easily with popular reverse-engineering and inspection software. Scan data can be exported to platforms such as:

• QuickSurface

• Geomagic Design X

• Other CAD and inspection tools

Typical applications include:

• Reverse engineering

• Product design and prototyping

• Quality inspection

• Cultural heritage digitization

• 3D printing preparation

---

Key Features

• Hybrid blue-laser + NIR structured-light scanning

• Accuracy up to 0.02 mm

• Multi-mode scanning (22 + 7 + 1 laser lines)

• Scan range from 5 mm to 4000 mm

• Standalone operation with built-in processing

• 6-inch HD touchscreen interface

• Qualcomm processor with 24 GB RAM

• Dual hot-swappable batteries

• Wi-Fi 7 wireless connectivity
